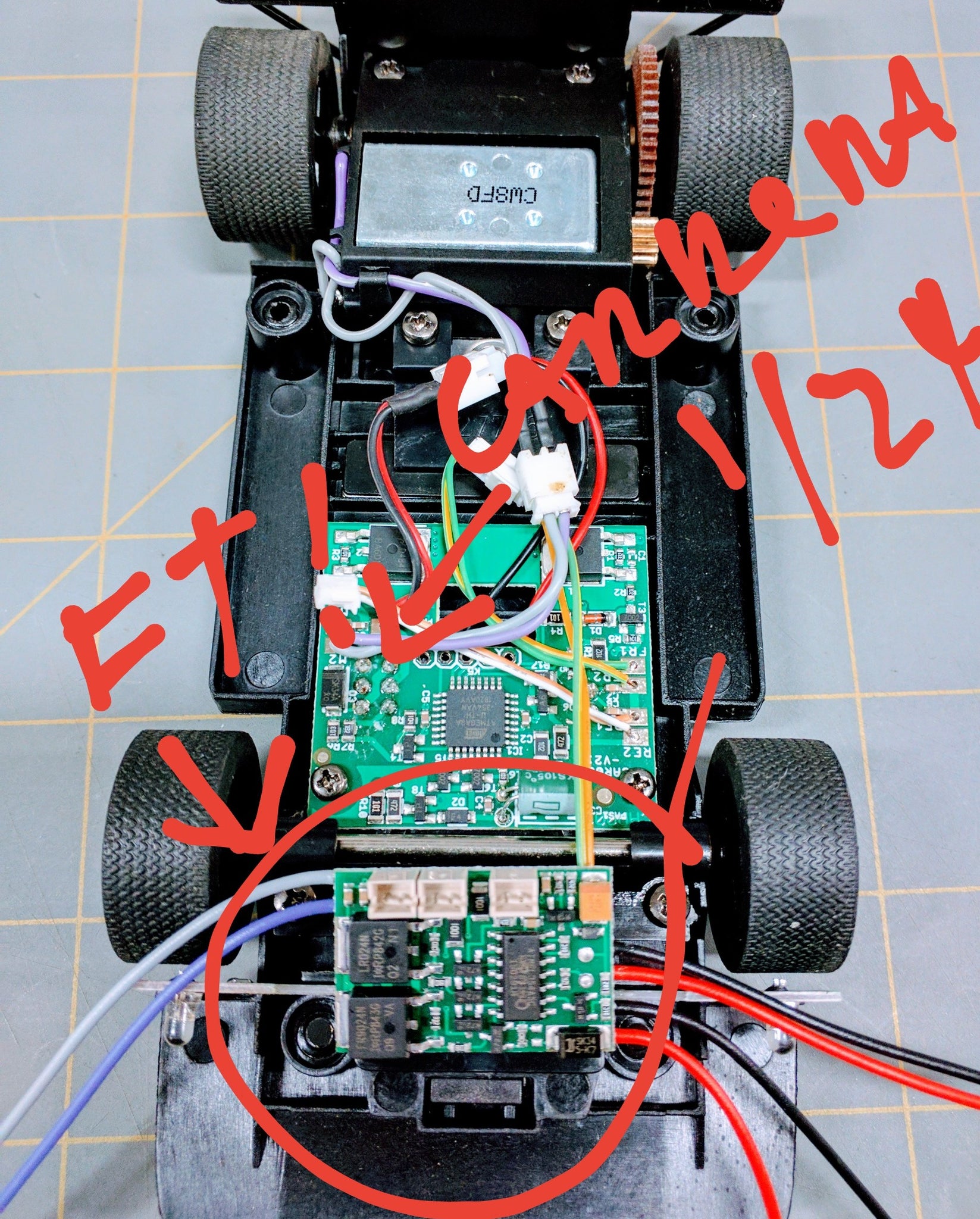

18.5V rated voltage chip! Convert any brand of slot cars to Carrera Digital standard. (NSR, Slotit, Ninco, Scalextric, Fly, Thundeslot, Revoslot, BRM etc)
Fully compatible with Carrera® Digital and all 1/32 and 1/24 scales
Extra long wires, color coded to Carrera brand standards.
Package includes:

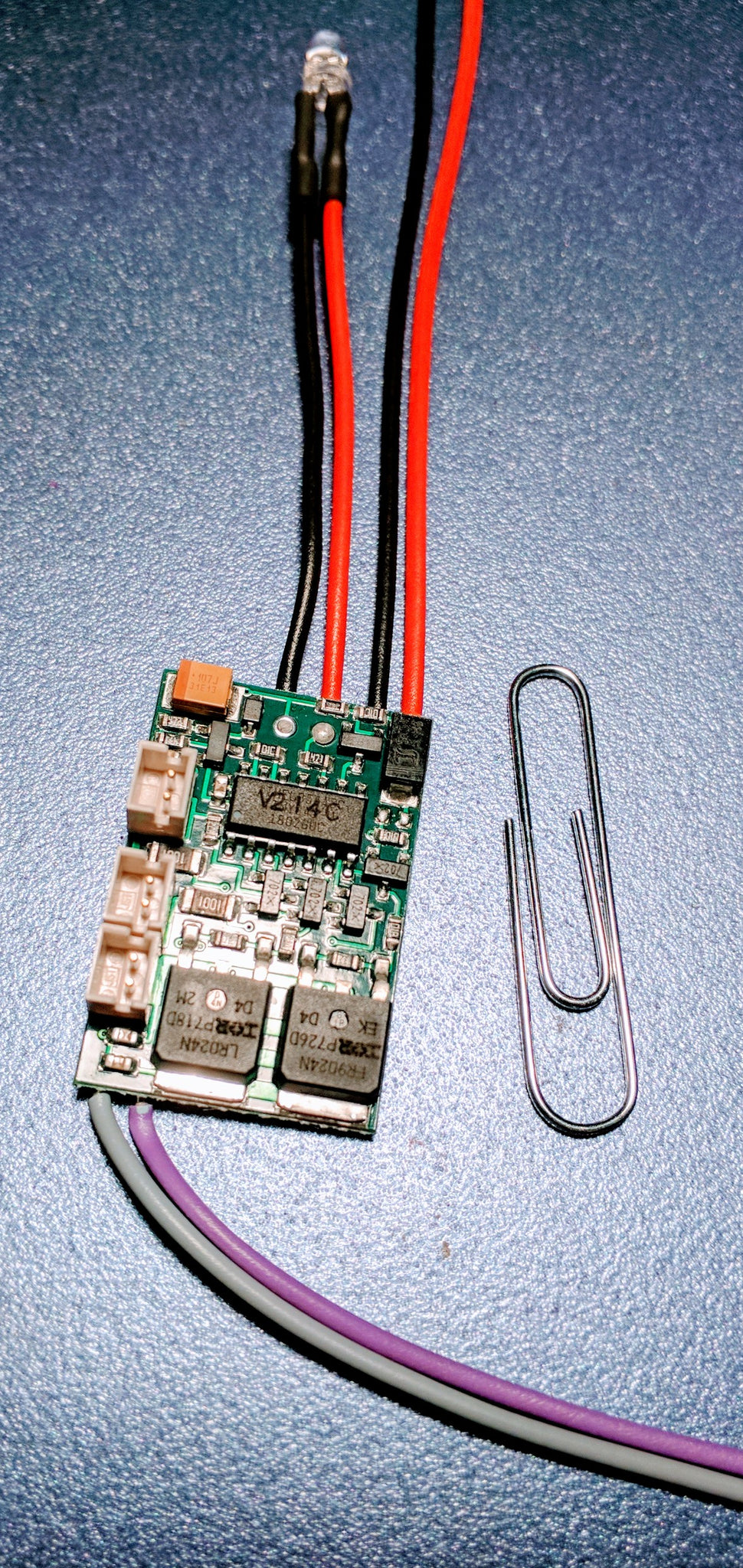

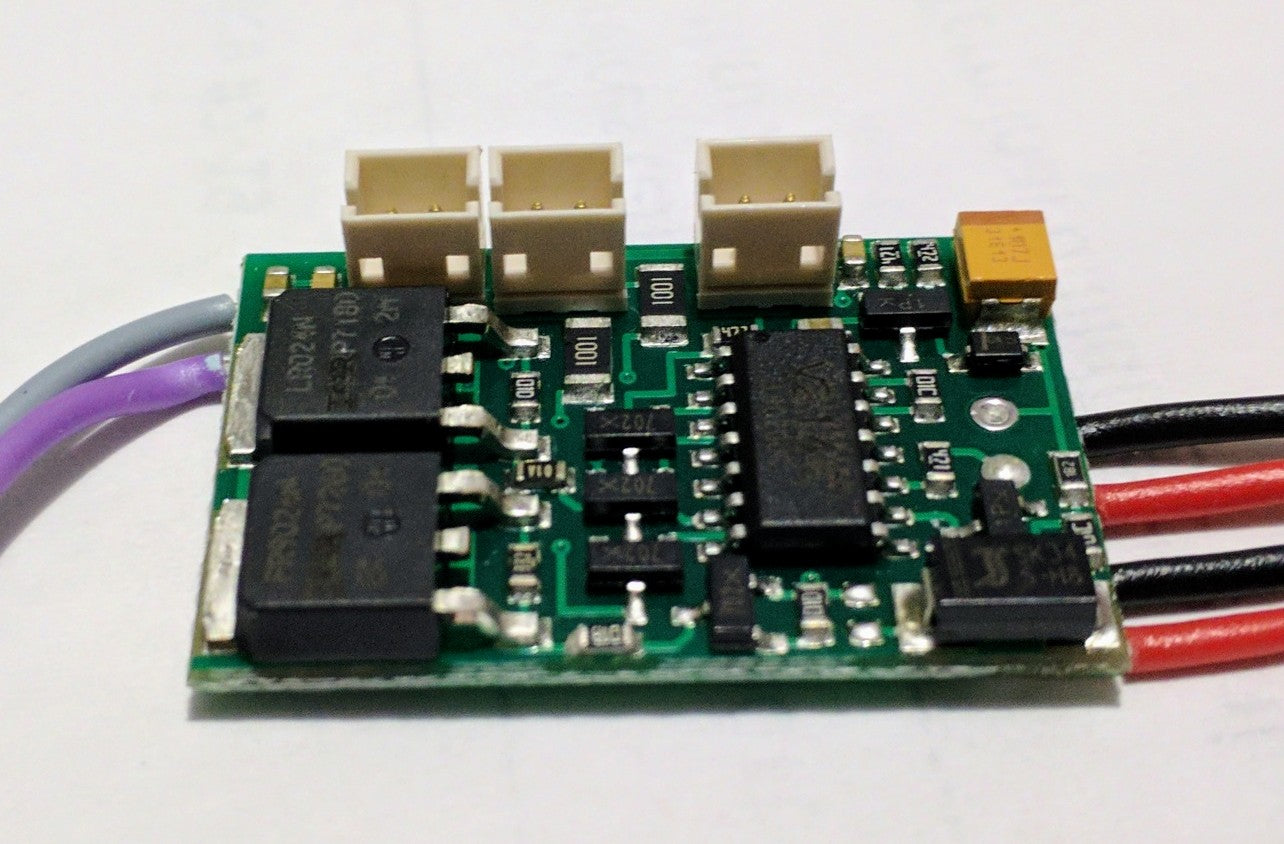

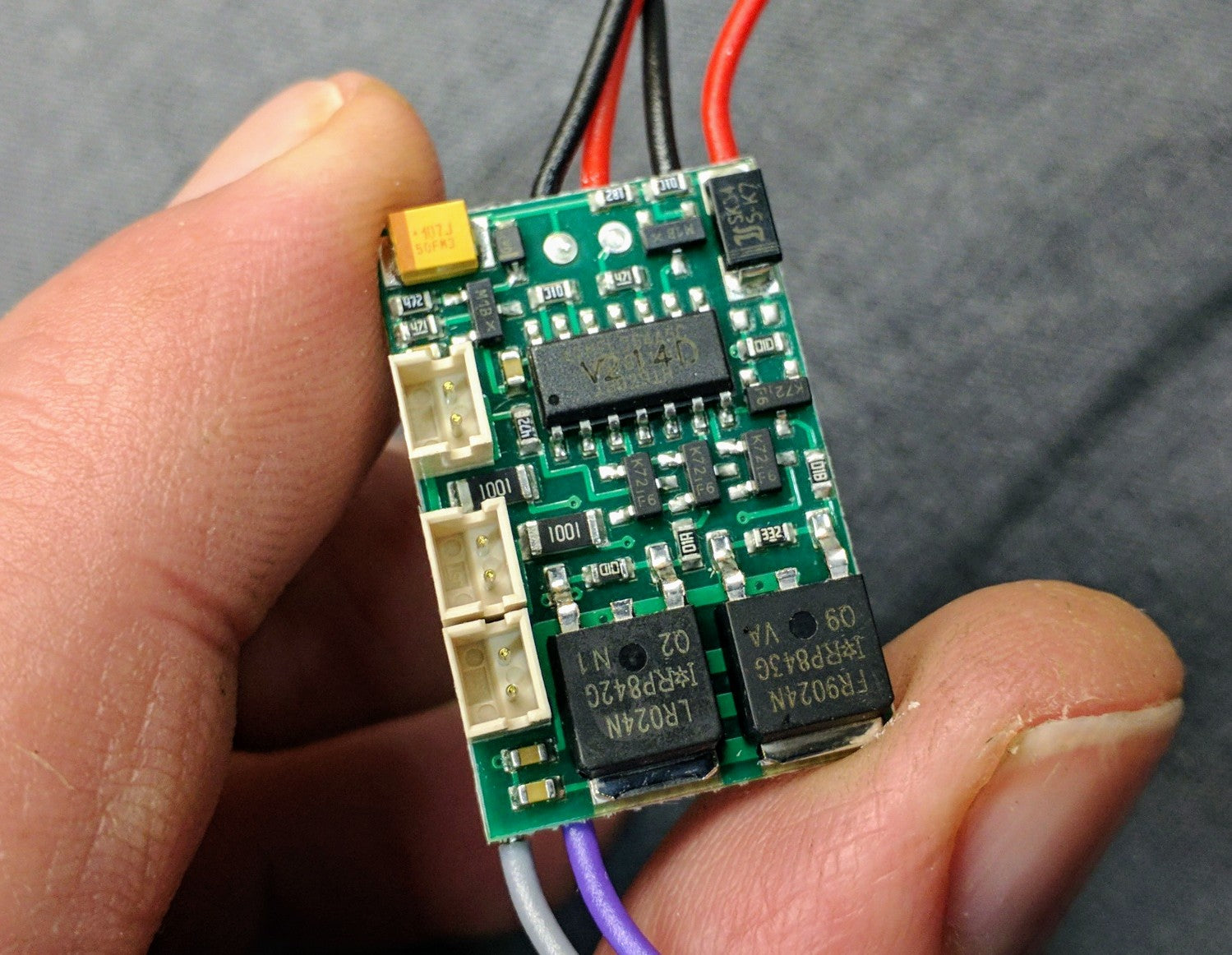

1-Assembled, ready to use decoder chip with extra long 4" feed and motor wires.
2- Lights assemblies wires, loose: three
3- Pre wired IR-Diode sensor
4- Special custom IR-Diode sensor bracket
5- Color instructions in English
Specifications:
Minimum operating voltage: 12.0 volts DC
Maximum operating voltage: 18.5 volts DC -IDEAL FOR 1/24 SCALE SLOT CARS!
Dimensions (L x W x H): 28 x 18 x 8 mm
Weight: 3 grams - extra lightweight!

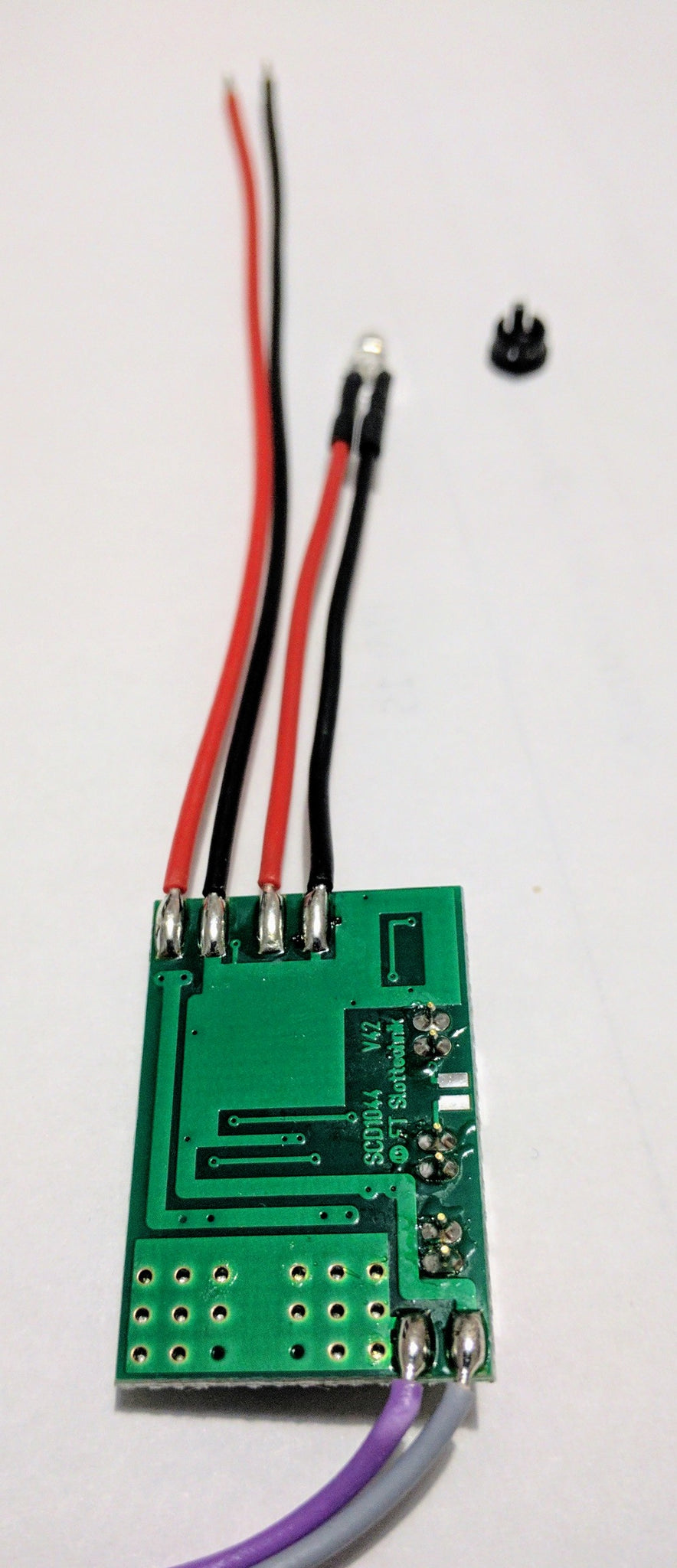

Underside - 90% component free assembly for a smooth mounting surface!
Special functions
Front light, rear light and separate brake light
No accidental transcoding while driving, increased braking effect.
Safety car or Pace car functions are not integrated on this chip. Pit Lane function is only possible if your track is equipped with Carrera CU 30352
Made and developed in Germany by FT-Slottechnik
